Specifications:
- 304SS construction
- Tooled for one cap size
- Alternating vibration coil and control cube
- Heavy-duty Bowl cart
- Optional diameters to accommodate varying cap sizes and types
- Custom tooling available
- Full chute pause also available
Bottle Capping Machines, Cap Feeding and Sorting Information

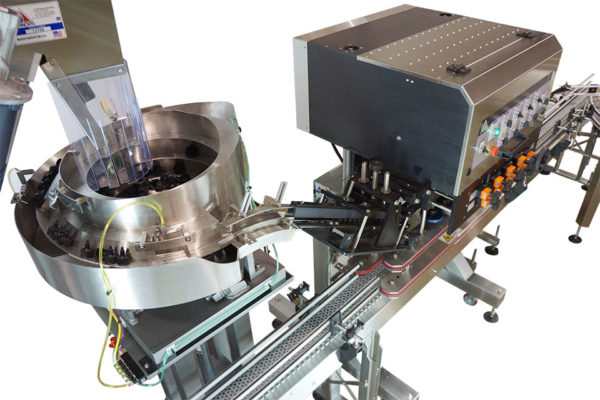

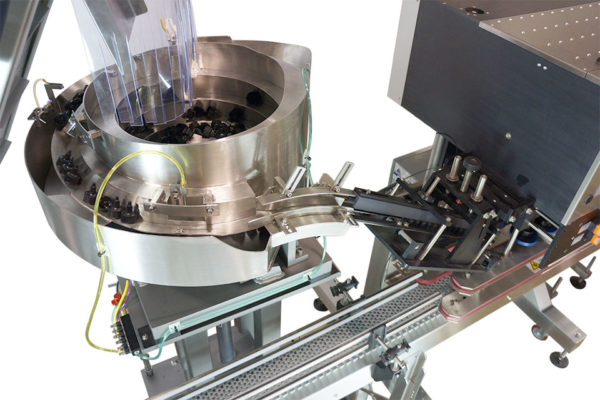

Vibratory Cap Sorting Bowl
The Vibratory Cap Sorting Bowl is just one of the many cap sorting options APACKS’ offers for our Automatic Inline Spindle and Chuck Cappers, depending on cap sizes and types as well as desired production rates. The Vibratory Cap Sorting Bowl is the most versatile, capable of handling both flat, non-flat or specialty caps. The Vibratory Bowls are available in many diameters to accommodate different sizes and shapes, such as sport caps or cone caps.
Spec Sheet Download
Simply click on the link below to open the pdf. If you would like to download it, please right click, and then choose save as.
Download Spec SheetRelated products
Automatic Capping Machine InformationAutomatic Spray Bottle Capping Machine
The special features of the Automatic Spray Bottle Capping Machine are its ability to maintain a constant torque in the application of each cap, and to handle special applications such as fragile caps or caps with very low torque requirements. In fact the torque value of each head can be regulated from 0,02 Nm to 6,0 Nm, and can be added as a recipe by using the operator panel. Therefore, for every cap, it’s possible to memorize the correct torque value, and when necessary, to recall it by simple use of a push button function.
- Automatic Capping Machine Information
T-Corker with Sorter & Pre-feeder
Bottle Capping MachinesHandheld Pneumatic Chuck Capper
Our Pneumatic Handheld Capper is a portable cap tightener, capable of tightening or removing screw type caps. An adjustable clutch reduces cap damage and reduces insert wear. This Capper is pressure-activated, simply started by gently pushing down on top of the capped bottle. This means no on/off switches or levers. Once the cap is tight, the chuck automatically stops and you can move onto the next bottle. The CAH-1000 includes an adjustable self-balancer with retracting line, that allows the tool to be suspended neatly and weightlessly overhead, out of the way during case changes, reducing labor fatigue. Chucks and Inserts are sold separately, configured for your products and production*. *Please specify cap size(s) for proper chuck selection when ordering. It may be necessary to purchase additional chucks for different sized caps. We recommend purchasing additional inserts to have on hand for wear replacement.
- Automatic Capping Machine Information
Automatic Single Head Chuck Capper
This Automatic Chuck Capper uses torque-open chuck design to place and torque caps automatically at speeds up to 20bpm. It comes standard with an Allen Bradley control package and powder-coated mild steel frame with interlocked polycarbonate safety doors. The single cam system, controls chuck height as well as the pick-off assembly. It comes equiped with sensors for empty chute, container in place, and container stand-by. It is capable of handling 1 bottle and 1 cap up to 33mm for straight and angled neck containers. The Automatic Chuck Capper is designed for flow-through integration with a 4.5” wide conveyor.
