Semi-Automatic Inline Capping Machines

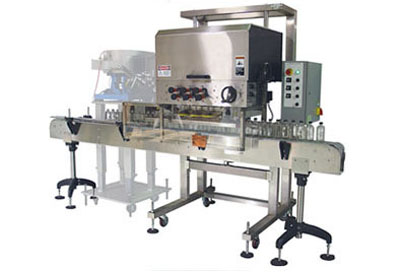

The CST-6000-AP Automatic Bottle Cap Tightener is fully adjustable for caps from 8 mm to 110 mm in diameter and container heights from 1 to 14 inches. Construction features a heavy duty 304 Stainless steel welded C frame with stainless steel top and bottom belt plates. No change parts needed for a wide range of containers.

SKU: CST-6000-AP Categories: ,



Tightener Features:

  • Fully adjustable for caps from 8 mm to 110 mm
  • Fully adjustable from 1 inch to 14 inch high containers
  • Heavy duty 304 Stainless steel welded C frame. Stainless steel top and bottom belt plates
  • All shafts from ¼ to 2.5 inches manufactured in 304 stainless steel
  • 6 capping discs, with bottom screws change over
  • Direct gear motor transmission through coupling for capping belts movement
  • Chain power transmission for capping discs
  • DC gear motor for independent speed control of gripper belts
  • DC motor for independent speed of capping discs
  • Capping discs adjustment by stainless steel frontal knobs, with lock nut hand wheel
  • Gripper belt adjustment by hand wheel
  • No change parts needed for a wide range of containers

Electric and pneumatic requirements:

  • 110 Volts, 60Hz, 15 Amps
  • 5 CFM @ 80 p.s.i.
