Aerosol Filler, Liquid Filling Machines

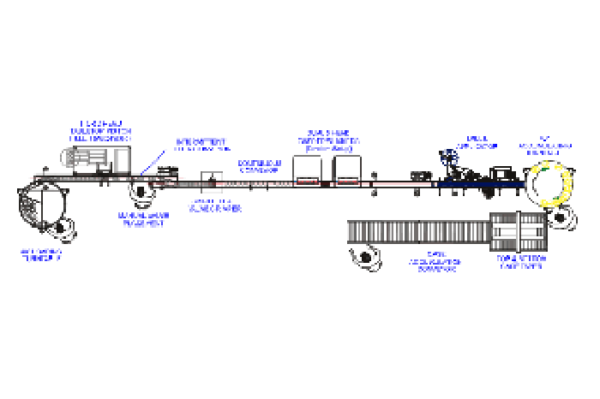

Semi-Automatic Aerosol Filling Line for 20 to 30 Aerosol Spray Cans per Minute
Here is a semi-automatic aerosol filling line that’s perfect for small volume production. It features semi-automatic operation to produce 1,200 to 1,800 aerosol containers per hour with only 4 operators. The first operator loads containers on to our rotary loading table while inspecting the containers for quality. Filling is performed by an automatic single head, or two head, tabletop piston filling machine for consistent filling volume. The second operator manually places the spray valve on the container. Both the single head valve crimper, gasser/shakers and labeling are automatic. The third operator takes the spray cans from the rotary accumulating table, puts the cap on, gives a final inspection and places the finished product into the cases. The fourth operator stacks the cases.
Related products
- Aerosol Filler
Aerosol Crimping Station
ACM-1000-GE Aerosol Crimping Station is designed for small volume aerosol production and laboratory use. It includes one air cylinder, a crimp plate mounted on an adjustable stand, and the crimping head. The unique Crimping Head features an 8 segment collet and an adjustable pressure chamber within the crimp body. This allows the operator to apply a customer specified pressure to a gasketed or related aerosol dispensing valve just prior to crimping onto the aerosol container.
Gravity Filling Machine InformationEconoline Liquid Filling System
Available in four different types of filling methods: The Volumetric Single Head Piston Filler comes in a variety of Piston sizes for either thin or thick products while the Single Head Positive Displacement Pump Filler can fill a wide range of product viscosities from 1oz to 1 gallon. The Gravity Filler fills thin liquids volumetrically-by-time and can be configured for two or four heads. The Two Head Overflow Filler provides exceptional cosmetic fills for thin products by offering an all-inclusive, user- friendly production line. Econoline Systems include a 28 inch Rotary Loading Turntable, 10 foot Conveyor, your choice of four Automatic Fillers, Handheld Chuck Capper, plus one Chuck and Insert, and a 28 inch Rotary Accumulating Turntable. These systems are built with anodized aluminum construction and mounted on casters with leveling legs requiring only minimal assembly. PLC touch screen controls and DC gear motors on the Turntables and Conveyor come standard.
- Aerosol Filler
Automatic Aerosol Filling Line for 20 to 40 Aerosol Spray Cans per Minute
This is an example of a semi-automatic aerosol filling line, perfect for small volume production. It features a semi-automatic operation capable of producing up to 1,200 to 2,400 aerosol containers per hour. The first operator loads containers on to our rotary loading table while inspecting the containers for imperfections. Filling, valve placement, valve crimping, gasser/shakers, and labeling are all automated. The second operator removes the spray cans from the rotary accumulating table, places the over cap, inspects, and places the finished product into cases. The third operator stacks the cases on pallets and preps the pallets for shipping.
Aerosol FillerIn-Line Aerosol Gasser/Shaker
Our AGA-1400-GE In-Line Aerosol Gasser/Shaker is manufactured for dependability, low maintenance and product producing quality. The simplicity of design provides precise cyclic motion that enhances absorption of propellant throughout the product more quickly and completely.
