Specifications:
- Reduces manual reloading and maintains efficient levels of caps in
- Cap Sorting Bowl 304SS
- Bulk Hopper and Elevator Bed with anodized aluminum parts
- Flighted elevator belt suitable for a variety of caps sizes
- Includes Level Sensor
Bottle Capping Machines, Cap Feeding and Sorting Information

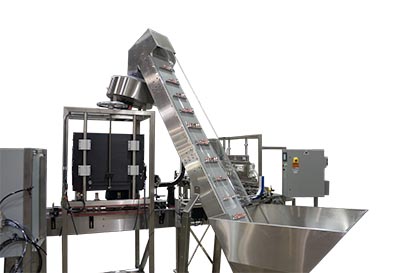

Bulk Cap Feeding Elevator
APACKS provides a number of ergonomic solutions for your Cap Feeding needs. Our Bulk Cap Feeding Elevator reduces manual cap reloading while simultaneously maintaining efficient cap levels in any Cap Sorter. The Bulk Cap Feeding Elevator is the ideal solution for feeding any type of cap sorting device. The Hopper is located low enough for easy bulk cap loading by the Operator.
Spec Sheet Download
Simply click on the link below to open the pdf. If you would like to download it, please right click, and then choose save as.
