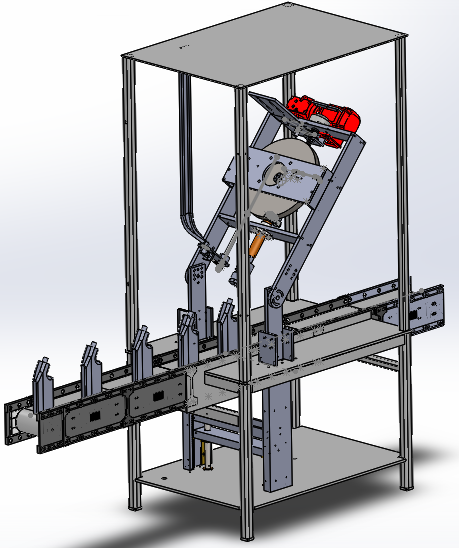

Automatic Single Head Chuck Capper

This Automatic Chuck Capper uses torque-open chuck design to place and torque caps automatically at speeds up to 20bpm. It comes standard with an Allen Bradley control package and powder-coated mild steel frame with interlocked polycarbonate safety doors. The single cam system, controls chuck height as well as the pick-off assembly. It comes equiped with sensors for empty chute, container in place, and container stand-by. It is capable of handling 1 bottle and 1 cap up to 33mm for straight and angled neck containers. The Automatic Chuck Capper is designed for flow-through integration with a 4.5” wide conveyor.

SKU: WQADVR2W5J Categories: ,
  • Uses Torque-Open Chuck design
  • Single Cam system, controls chuck height and pick-off assembly
  • Sensors for; empty chute, container in place, container stand-by
  • Set up for 1 bottle and 1 cap up to 33mm, additional parts sold separately
  • All custom parts are designed for quick change
  • Allen Bradley Control Package
  • Frame: Powder-coated mild steel
  • Guarding: Interlocked Safety Doors, polycarbonate
  • Designed for flow-through integration with 4.5″ conveyor chain, conveyor sold separately

Specifications

  • Electrical Requirement: 230/460VAC, 3 phase, 50-60 Hz
  • Pneumatic Requirement: Clean, dry, compressed air at 90 PSI
  • Footprint without sorter: 28 x 32″
  • Typical Container Range: 1 ounce to 2.5 Gallon F-Style
  • Cycle Rate: Up to 36 cycles/minute (estimate up to 20/min on gallons, 10/min on 2.5 gallon)
